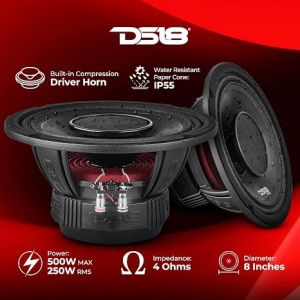

DS18 PRO-HY8.4B 8" Hybrid Mid-Range Car Audio Loudspeaker

Home
Car Audio
DS18 PRO-HY8.4B 8" Hybrid Mid-Range Car Audio Loudspeaker

Leave review

− +

Shipping methods

SHIPPING INFORMATION

IMPORTANT: Audio and Speakers Shop is a product review website.

We do not sell, ship, or deliver any products.

When you click "View on Amazon", you will be redirected to Amazon.com

where you can make your purchase. All shipping and delivery is handled

entirely by Amazon.

For shipping options and delivery times, please refer to Amazon's

shipping policies on their website.

We have no involvement in:

• Order processing

• Payment handling

• Shipping or delivery

• Returns or refunds

All these services are provided directly by Amazon.

Payment methods

IMPORTANT NOTICE: Audio and Speakers Shop does NOT process any payments.
We do NOT collect credit card information, bank details, or any payment data.
When you click "View on Amazon" on our product pages, you will be
redirected to the official Amazon.com website where all payments are
processed securely by Amazon.
We do not accept payments in our online store. You can make your payment directly to Amazon.
The following payment methods are available on Amazon

Description

Brand	DS18
Speaker Maximum Output Power	500 watts
Frequency Response	20 KHz
Connectivity Technology	Coaxial
Audio Output Mode	Surround

PRO 6.5" Hybrid Mid-Range Loudspeaker with Built-in Driver 4-Ohm

DS18's Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 6.5 high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.

SPECIFICATIONS
Nominal Diameter 6.5”
Nominal Impedance 4 OHMS
RMS Power Handling 225W
MAX Power Handling 450W
Sensitivity (1w/1m) 96dB
Frequency Response 100Hz-20KHz
Recommended Hi Pass Crossover 120 Hz
Number of Ways 2
Pair or Single Single

MID-RANGE SPECIFICATIONS
Voice Coil Diameter 1.5” / 38.6 mm
Voice Coil Former Material Glass Fiber
Winding Material CCAW
Cone Material Water Resistant Paper
Surround Material Cloth
Basket Material Aluminum
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 27 oz
Displacement volumen 0.047L

THIELE & SMALL PARAMETERS
Equivalent Volume Vas 2.211L
Excursion (one way) Xmax 9.2 mm
Free Air Resonance FS 199Hz
Mechanical Factor Qms 5.96
Electrical Factor Qes 1.524
Total Factor Qts 1.214
Mechanical Mass Mms 8.654g
Mechanical Compliance Cms 73.792 mm/N
BL Factor BL 4.769
Voice Coil Inductance Le 4.22mH
Cone Area Sd 145.26 Cm2
DC Resistance Re 3.2 ohms
Mechanical Mass w/o Air Mmd 6.7g&n

Additional details

Audio Output Mode	Surround
Mounting Type	Car Mount
Enclosure Material	Aluminum, Ferrite, Titanium, Cloth
Speaker Type	Surround Sound
Additional Features	Midrange with Driver Horn
Antenna Location	Car Audio Pro Audio
Subwoofer Diameter	8 inches
Color	Red
Is Waterproof	TRUE
Warranty Type	Limited
Control Method	Voice
Speaker Size	8 inches
Woofer Diameter	8 inches

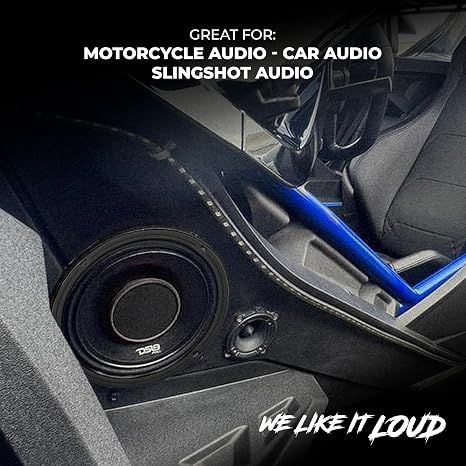

Specific Uses For Product	Vehicle use, pro audio, high wattage and volume, water-resistant for moist environments
Controller Type	Voice control
